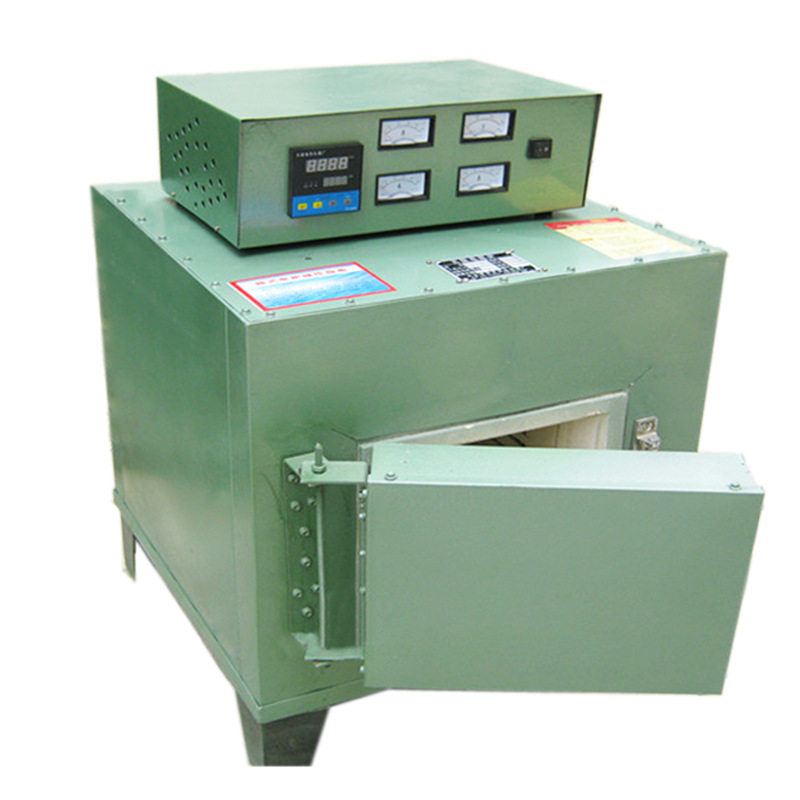

The high-temperature box-type muffle furnace is an industrial equipment that achieves high-temperature processing of materials by accurately controlling the temperature and gas environment in the furnace. The following is a detailed introduction about it: Structural features Furnace material: The furnace is usually made of refractory materials such as ceramic fiber, high-purity alumina polylight material or silicon carbide, which has low heat capacity and high thermal insulation performance, and can reduce heat loss.  Heating element: Silicon carbon rods (applicable to temperatures below 1200°C) or silicon molybdenum rods (applicable to temperatures above 1600°C) are commonly used as heating elements, with long life and high thermal efficiency. The heating elements are reasonably laid out and arranged in a surrounding or layered manner to ensure a uniform temperature field in the furnace.  Furnace body design: Most are split-type designs. The furnace body is separated from the control cabinet, which reduces the temperature of the operating area, improves safety, and facilitates maintenance. The double-layer structure of the furnace body is filled with insulation materials, and combined with an air-cooling heat dissipation system, it can lower the surface temperature and reduce energy consumption.  Temperature control Temperature control range: The operating temperature range of conventional models is 800-1800°C, and some special models can reach over 2000°C, which can meet the high-temperature processing needs of metals, ceramics, glass and other materials.  Temperature control system: Adopts PID control algorithm, combined with high-precision thermocouples and intelligent temperature controllers, to achieve rapid response and stable control of temperature, with temperature control accuracy up to ±1°C. Supports multi-segment programming, and can preset heating rate, holding time and cooling curve to adapt to complex processes.  Over-temperature protection: Equipped with an independent over-temperature alarm system, when the actual temperature exceeds the set value, the heating power is automatically cut off and an alarm is issued to prevent equipment damage or safety accidents.  Functional characteristics Atmosphere control: Conventional models use air atmosphere, but inert gases such as nitrogen and argon or reducing gases such as hydrogen can be introduced through the reserved atmosphere interface to prevent oxidation or nitridation of materials. Some high-end models also support vacuum operation.  Easy to operate: touch screen or button control panel supports switching between Chinese and English, intuitive parameter setting, some models are equipped with remote monitoring function, and the temperature curve and equipment status can be viewed in real time through the mobile APP or computer.  Easy maintenance: The heating element can be quickly replaced without disassembling the entire furnace body. The inner wall of the furnace is smooth and easy to clean, reducing the impact of residues on temperature control.  Application fields Scientific research and laboratory fields: It can be used for ceramic/glass sample sintering, metal sample heat treatment, composite material preparation, sample burning and ashing, chemical synthesis reactions, catalyst activation, etc.  Industrial production field: suitable for heat treatment of precision parts, production of special materials, quality inspection and rework, etc., such as tool/mold quenching, high temperature treatment of electronic components, refractory material preparation, sintering of powder metallurgy products, etc.  Other special application fields: In the field of cultural relic restoration and protection, it can be used for the restoration of ceramic cultural relics, desalination of metal cultural relics, etc.; in the field of energy and environmental protection, it can be used for biomass energy research, hazardous waste treatment experiments, etc.
