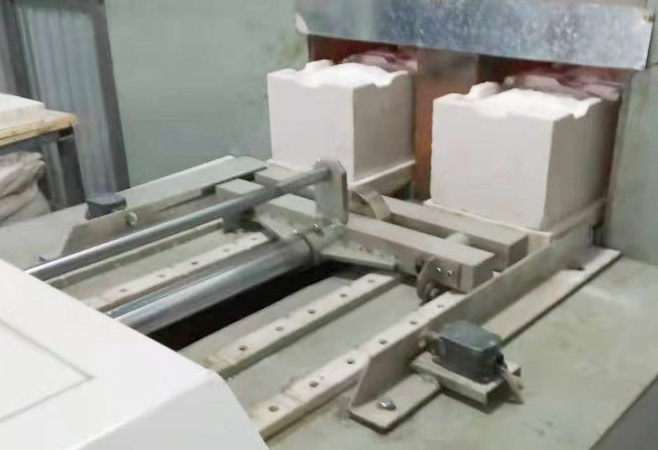

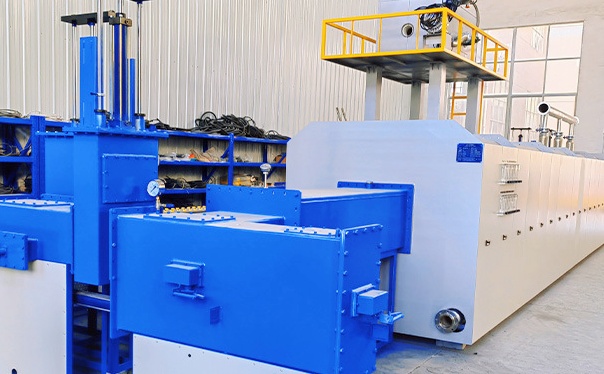

The roller kiln is a continuous high-temperature heating equipment that uses rollers as material transport carriers. Its core feature is the smooth and continuous transmission of materials through the rotation of roller rods. It is widely used in large-scale production in ceramics, glass, electronics and other industries.  1. Core structural composition The structure of the roller kiln is designed around "continuous conveying + precise temperature control" and mainly includes four major systems: Kiln body system: It is composed of kiln wall, kiln roof, and kiln bottom. The interior is divided into three core areas according to the process: preheating zone, firing zone, and cooling zone. The kiln body is made of lightweight refractory materials (such as ceramic fiber) and insulation materials to reduce heat loss; sealing devices are installed at both ends to prevent high temperature from leaking out and cold air from entering.  Roller conveyor system: The core component is high-temperature resistant roller rods (common materials are silicon carbide and corundum), which are evenly arranged in the kiln. They are driven by transmission motors, reducers, and gearboxes to rotate synchronously to transport materials (such as ceramic tiles, glass substrates) from the feed end to the discharge end. The conveying speed can be adjusted by a frequency converter (usually 0.5-5m/min).  Heating system: Heating elements are arranged according to temperature zones. Resistance wires and electric heating tubes are mostly used in the preheat zone and cooling zone. Silicon carbon rods and silicon molybdenum rods are commonly used in the firing zone (high temperature zone). Some kilns will have heating elements both above and below the rollers to ensure that the material is heated evenly up and down, and the cross-sectional temperature difference can be controlled within ±3°C.  Control system: Using PLC + touch screen control, it can conduct real-time monitoring and parameter setting of the temperature of each temperature zone, roller speed, and atmosphere in the kiln (such as oxidation and reduction); it is equipped with safety functions such as over-temperature alarm, power-off protection, and roller failure shutdown to ensure stable operation of the equipment.  2. Working principle Material preparation: Place the materials to be processed (such as ceramic green bodies, electronic components) neatly on the feeding platform at the kiln entrance, ensuring that the center of the materials is aligned with the central axis of the roller table.  Continuous conveying: start the roller system, and the rollers drive the materials slowly into the kiln body, and pass through the preheating belt (removing moisture from the material and preheating), the sintering belt (reaching the set high temperature to complete sintering/melting), and the cooling belt (gradually cooling to normal temperature to avoid material cracking).  Precise temperature control: The heating elements in each temperature zone work according to the set parameters, the temperature sensor feeds back data in real time, and the control system automatically adjusts the heating power to maintain temperature stability in each zone; the cooling zone uses a cold air or water cooling system to control the cooling rate to meet process requirements.  Finished product output: After the materials complete all processes, they are automatically sent out from the discharging end at the end of the kiln and enter the subsequent sorting and packaging processes.

Core advantages: High production efficiency: continuous operation, no need to frequently open and close the furnace door, and the daily output of a single kiln can reach thousands or even tens of thousands of pieces, far exceeding that of intermittent kilns.  Stable product quality: the material transmission speed is uniform, the temperature of each temperature zone is accurately controllable, avoiding quality fluctuations caused by manual operations, and the finished product qualification rate is high.  Good energy saving: Compared with traditional push plate kilns, roller kilns do not have kiln cars, saggers and other consumables, and heat consumption is reduced by 30%-50%; some models are equipped with a waste heat recovery system that can use high-temperature flue gas to preheat cold air.  Precautions for use Roller maintenance: Regularly check whether the roller is bent or worn. If it is damaged, replace it in time to avoid material jamming or deviation; add lubricating oil to the roller transmission system every month to ensure smooth rotation.  Cleaning in the kiln: Clean the material debris and dust in the preheating zone and firing zone every week to prevent accumulation that affects the heating efficiency or contaminates the product.  Temperature calibration: Calibrate the temperature sensors in each temperature zone every quarter to ensure that the actual temperature is consistent with the displayed temperature to avoid product scrapping due to temperature measurement deviations.
